Commercial & Industrial BESS

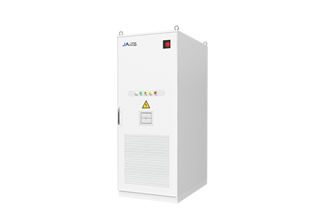

125 kW / 261 kWh C&I ESS Product

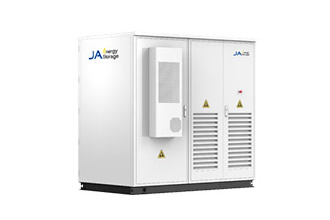

100 kW / 215 kWh Micro-grid Hybrid ESS Product

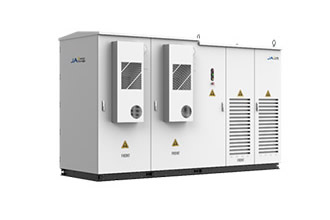

150 kW / 250 kW Micro-grid Hybrid Split ESS Product

Advantages

Ultimate Safety

Millisecond-level response with real-time insulation monitoring

Intelligent three-tier fire system with explosion-proof design and PACK-level detection

Real-time thermal runaway warning

Cost Efficiency

Higher ROI with long-life LFP batteries & precision SOX

System RTE up to 88 %

Intelligent liquid cooling keeps batteries ≤ 35 °C with ≤ 3 °C variance, cutting auxiliary power use by 10 %

Reliability

AI predictive maintenance cuts downtime by 90 %

Remote resolution fixes 90 % of issues via software updates

Modular design enables rapid replacement and boosts service efficiency

Technical Specifications

	Model	JAP-ES-125kW-261kWh
DC Side	Nominal Energy	261kWh
	Cell Capacity	314Ah LFP
	Nominal Voltage	832Vdc
	Voltage Range	728Vdc to 936Vdc
	Nominal Charge / Discharge Rate	0.5P
	Depth of Discharge	95%
	Nominal Power	125kW
AC Side	Nominal Voltage	380 / 400Vac, ±15% (3P4W + PE)
	Nominal Frequency	50/60Hz
	Power Factor	1.0 leading to 1.0 lagging
System Parameters	Dimensions (W × D × H)	989mm × 1465mm × 2473mm
	Cycle Life	8000+
	Weight	2700kg
	Operation Temperature Range	-30°C to +50°C
	Operation Humidity Range	0 to 95% (non-condensing)
	Cooling Method	Liquid Cooling
	Fire Suppression System	Pack-level & Cabinet-level detection + Aerosol
	Protection Level	IP55
	Anti-corrosion Level	C4M
	Communication Protocol	MODBUS-TCP / IP, MODBUS-RTU
	Max. Number of Parallel	20
	Certification	IEC 62619, IEC 63056, IEC 60730, IEC 62477, IEC 61000, UL 9540A, UN 38.3

Download

Advantages

Safety & Reliability

LFP battery cells for safety and extended lifespan

Physical isolation between the battery and electrical compartments prevents thermal transmission

Flexibility & Compatibility

Multi-source inputs / outputs (PV / Battery / DG / Grid / Load)

Configurable operating modes for diverse scenarios

On/Off-grid seamless switching (< 20 ms)

Intelligence & Efficiency

Real-time system monitoring with cloud connectivity

Integrated plug-and-play design for rapid installation

Advanced battery management system and comprehensive thermal management system

Technical Specifications

	Model	JAP-HS-0100kW-0150kWp-0215kWh-B01
DC Side	Cell Type	3.2V/280Ah，LFP
	Nominal Voltage	768V，1P240S
	Nominal Energy	215.04kWh
	Operating Voltage Range	672Vdc to 852Vdc
	Max Continuous Charge / Discharge Rate	0.5P@25℃
	Cycle Life	≥6,000（90%DOD）
AC Side	Rated Output Power	100kW
	Rated Voltage	400Vac
	Voltage Range	320Vac to 460Vac
	Rated Current	144A
	Rated Frequency	50/60Hz
	Power Factor	1.0 leading to 1.0 lagging
	Overload Capacity	110% long term
	AC Output	3W+N+PE
	Isolation Transformer	270/400 Vac
	On/Off-grid Switching	Support (<20ms)
PV Side	Max. PV Input Voltage	1000Vdc
	Max. PV Power	165/247kWp
	MPPT Operating Voltage Range	250Vdc to 950Vdc
System Parameters	Dimensions (W × D × H)	2460mm × 1560mm × 2425mm
	Weight	≤3900kg
	Operating Temperature	0℃ to +45℃
	Humidity	0 to 95% RH (non-condensing)
	Protection Level	IP54
	Anti-corrosion Level	C4M
	Noise Level	<75dB
	Altitude	2000m
	Cooling Method	Air Cooling
	Fire Fighting System	Aerosol
	Communication	RS485，TCP/IP
	Max. Number of Parallel	4

Download

Advantages

Safety & Reliability

LFP battery cells for safety and extended lifespan

Physical isolation between the battery and electrical compartments prevents thermal transmission

Flexibility & Compatibility

Multi-source inputs / outputs (PV / Battery / DG / Grid / Load)

Configurable operating modes for diverse scenarios

On/Off-grid seamless switching (< 20 ms)

Split-type design enables free combination, offering flexibility and convenience

Intelligence & Efficiency

Real-time system monitoring with cloud connectivity

Integrated plug-and-play design for rapid installation

Advanced battery management system and comprehensive thermal management system

Technical Specifications

	Model	JAP-HS-0150kW-0150kWp-0430kWh-B01	JAP-HS-0250kW-0300kWp-0645kWh-B01
DC Side	Cell Type	3.2V/280Ah，LFP	3.2V/280Ah，LFP
	Nominal Voltage	768V, 2P240S	768V, 3P340S
	Nominal Energy	430 kWh	645 kWh
	Dimensions (W × H × D) per Cluster	1010×1560×2455mm	1010×1560×2455mm
	Operating Voltage Range	672V to 850V	672V to 850V
	Max. Continuous Charge / Discharge Rate	0.5P @ 25℃	0.5P @ 25℃
	Cycle Life	≥6000	≥6000
	Weight	4800（14400）kg	7200（19200）kg
AC Side	Rated Output Power	150kW	250kW
	Rated Voltage	400Vac	400Vac
	Voltage Range	320Vac to 460Vac	320Vac to 460Vac
	Rated Current	216A	316A
	Rated Frequency	50/60Hz	50/60Hz
	Power Factor	1.0 leading to 1.0 lagging	1.0 leading to 1.0 lagging
	Overload Capacity	110% long term	110% long term
	AC Output	3W+N+PE	3W+N+PE
	On/Off-grid Switching	Support (< 20 ms)	Support (< 20 ms)
PV Side	Max. PV Input Voltage	1000Vdc	1000Vdc
	Max. PV Power	165 / 247.5 / 330kWp	330 / 412.5kWp
	MPPT Operating Voltage Range	250Vdc to 950Vdc	250Vdc to 950Vdc
PCS Parameters	Dimensions (W × H × D)	2000×1375×2385mm	2735×1370×2385mm
PCS Parameters	Weight	2250(2310)kg	2250(2310)kg
System Parameters	Operating Temperature	0℃ to +45℃	0℃ to +45℃
	Humidity	0 to 95% RH (non-condensing)	0 to 95% RH (non-condensing)
	Protection Level	IP54	IP54
	Anti-corrosion Level	C4M	C4M
	Noise Level	<75dB	<75dB
	Altitude	2000m	2000m
	Cooling Method	Air Cooling	Air Cooling
	Fire Fighting System	Aerosol	Aerosol
	Communication	RS485，TCP/IP	RS485，TCP/IP

Download
